Here is a list of rockets that are members of the Aretmis rocket family. All of which (with exception to X2-04 “Philadelphia”, and X2-06 “Nala”) are retired.
Rocket Designation / Picture |
Information / Notes |

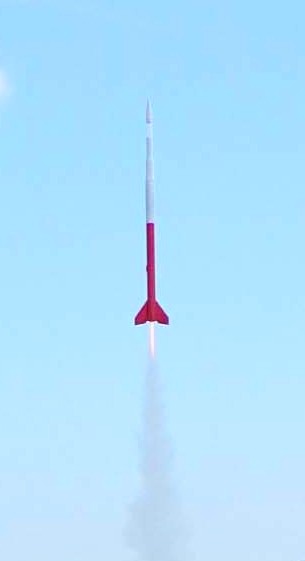

X2-01 ![X2-01b](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-01b-163x300.jpg) |
Name: Big RedNumber of missions: 6
Motors used: D12 (maiden) E9-6 (operational)
Maiden launch: March 2010
– Ejection Baffle
– Built exclusively for Mid Power rocketry |

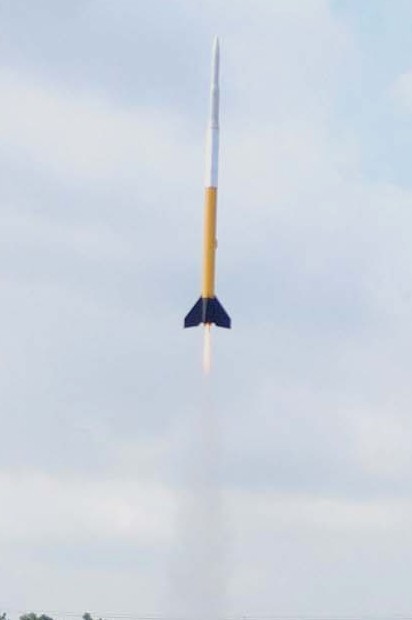

X2-02![X2-02c](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-02c-199x300.jpg) |
Name: Bumble Bee
Number of missions: 12
Motors Used: E9-6
Maiden Launch: May 15, 2010
– Used extensively in testing design stability in a “long rocket
design” format.
– Testing of design limits.
– Tested various ejection baffle design tweaks.
|

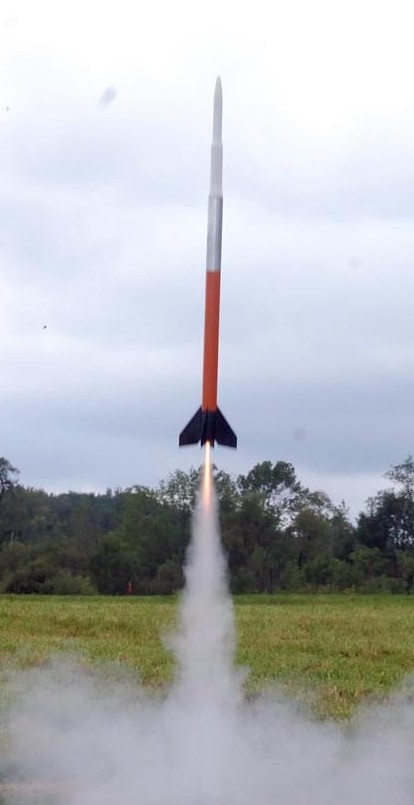

X2-03![X2-03b](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-03b-154x300.jpg) |
Name: GarfieldNumber of missions: 16
Motors used: E9-6 (experimental: composite -F12, E15)
Maiden Launch: May 15, 2010
– First test flights using composite propellants
– Test the maximum weight lifting / performance & slowest takeoff speed limits of design.
– Tested upper (fastest) speed limits of design.
|

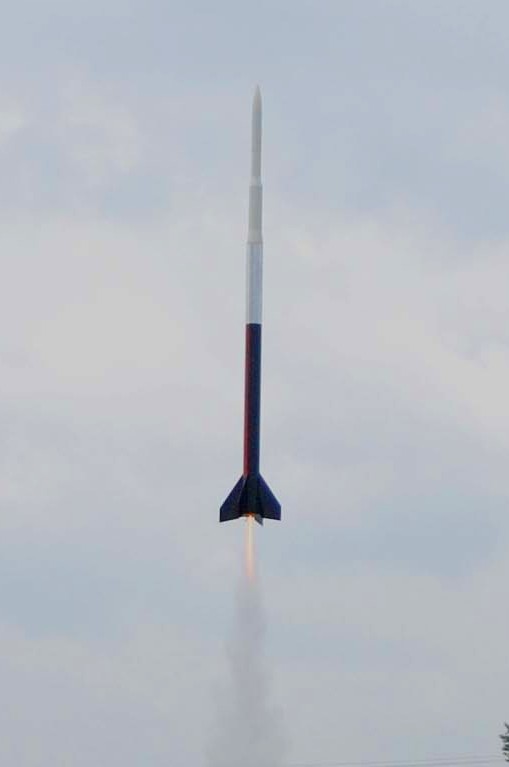

X2-04![X2-04b](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-04b-199x300.jpg) |
Name: Philadelphia
Number of missions: 4
Motors used: E9-6
Maiden launch: June 12, 2010
– Lighter (Lighter / Stronger) design.
– Currently being re-fitted for light weight dual deploy.
|
X2-05![X2-05d](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-05d-158x300.jpg) |
Name: Pathfinder
Number of missions: 6
Motors used: Aerotech F-24, F-35
Maiden Maunch: October 8, 2011
– Used to put all the design & flight experience of predecessor rockets to the test as the first dual deploy version of the Artemis Launch System (proof of concept)
– Significant internal design change to accomplish goal.
– Set the path for the first fully functional version of rocket.
|

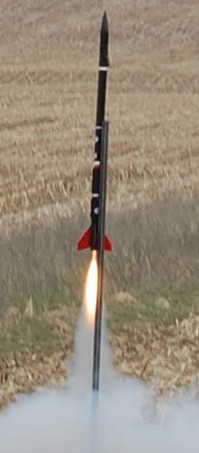

X2-06![X2-06d](http://www.cpgaeronautics.com/wp-content/uploads/2012/05/X2-06d-131x300.jpg) |
Name: Nala1
Number of missions(to date): 8
Motors used (so far): Aerotech F-40
Maiden Launch: March 25, 2012
– First fully functional (dual deploy, payload capable version) of the Aeremis Rocket family.
– Entirely new design.
– Testing many of the design techniques of X6- Nesaru rocket
|
